Type: Check valve
![](img/reverse/reverse_img01.jpg)

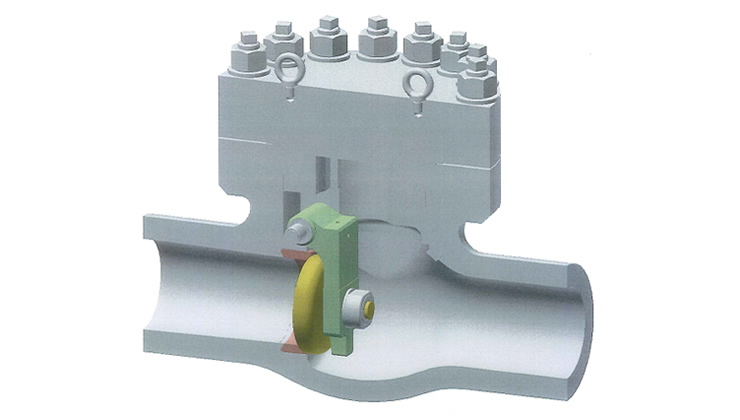

Low- and medium-pressure swing check valve
Nominal diameter (mm) | 65–400 |
---|---|
Pressure class | 150–900 lbs. |
Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |
![](img/reverse/reverse_img02.jpg)

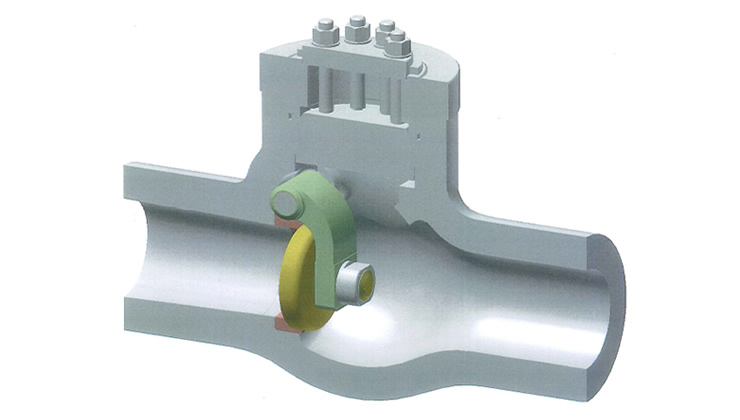

High-pressure swing check valve
Nominal diameter (mm) | 65–400 |
---|---|
Pressure class | 1500–4500 lbs. |
Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |
![](img/reverse/reverse_img03.jpg)

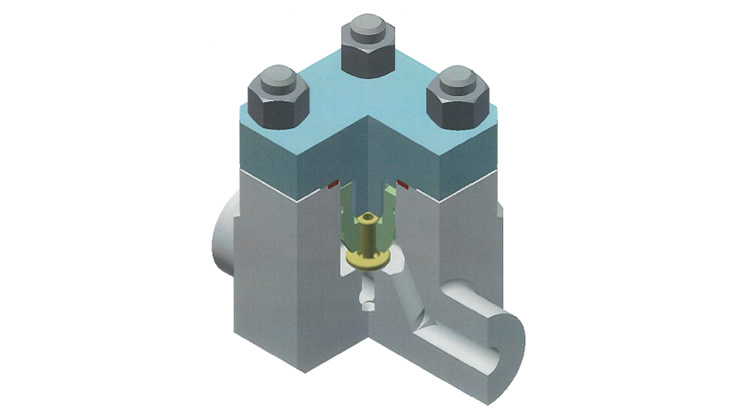

Medium-pressure lift check valve
Nominal diameter (mm) | 15–50 |
---|---|
Pressure class | 900 lbs. (900-lb. rating can also substitute for 150–600 lbs.) |
Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |
![](img/reverse/reverse_img04.jpg)

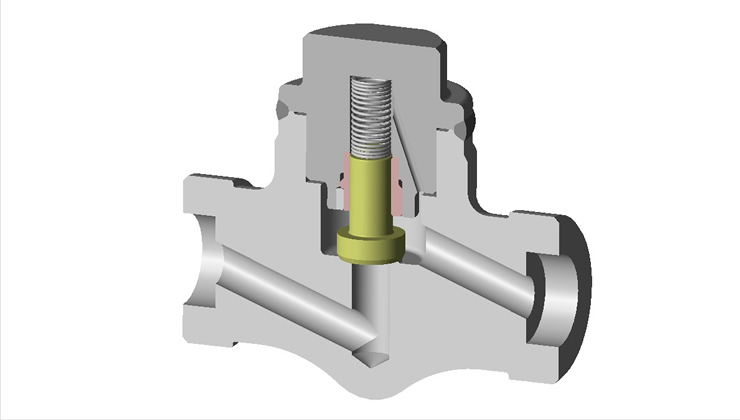

High-pressure lift check valve
Nominal diameter (mm) | 15–50 |
---|---|
Pressure class | 1500, 2500, 4500 lbs. |
Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |
![](img/reverse/reverse_img05.jpg)

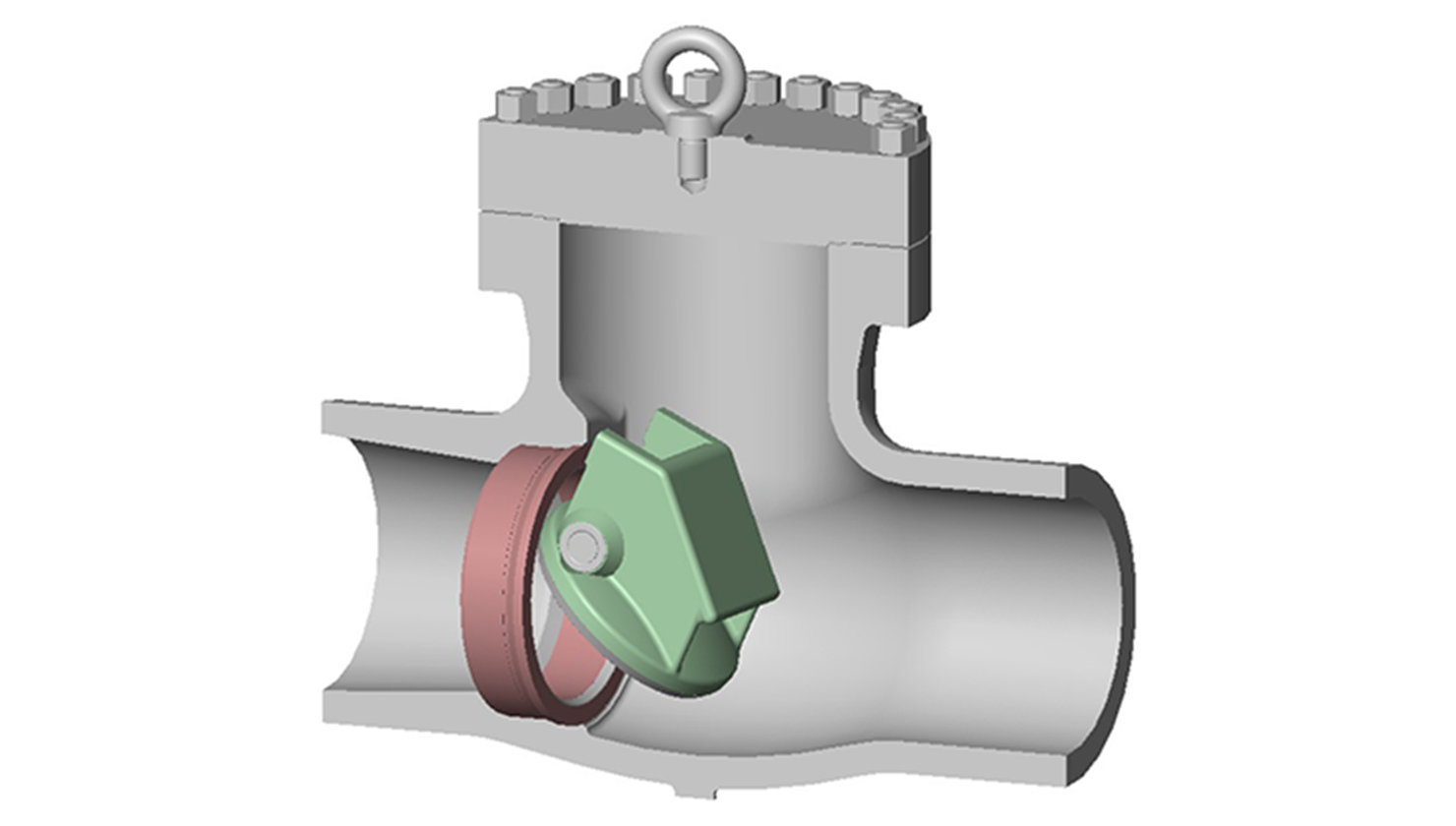

Low- and medium-pressure tilting check valve
Nominal diameter (mm) | 50–600 |
---|---|
Pressure class | 150–900 lbs. |
Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |
![](img/reverse/reverse_img06.jpg)

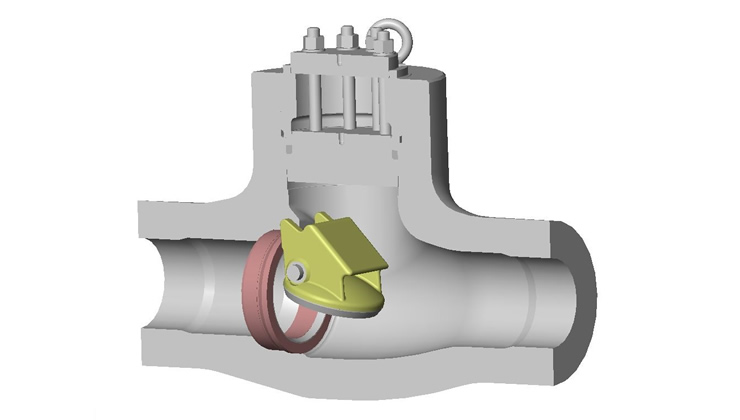

High-pressure tilting check valve
Nominal diameter (mm) | 50–500 |
---|---|
Pressure class | 1500–4500 lbs. |
Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |
![](img/reverse/reverse_img07.jpg)

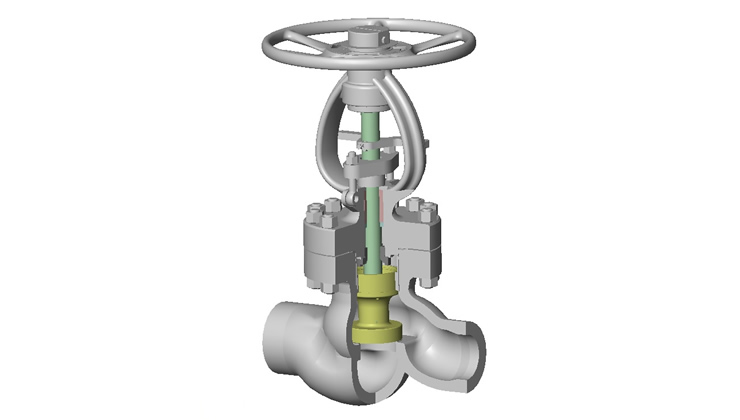

Low- and medium-pressure screw-down stop check valve
Nominal diameter (mm) | 15–600 |
---|---|
Pressure class | 150–900 lbs. |
Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |
![](img/reverse/reverse_img08.jpg)

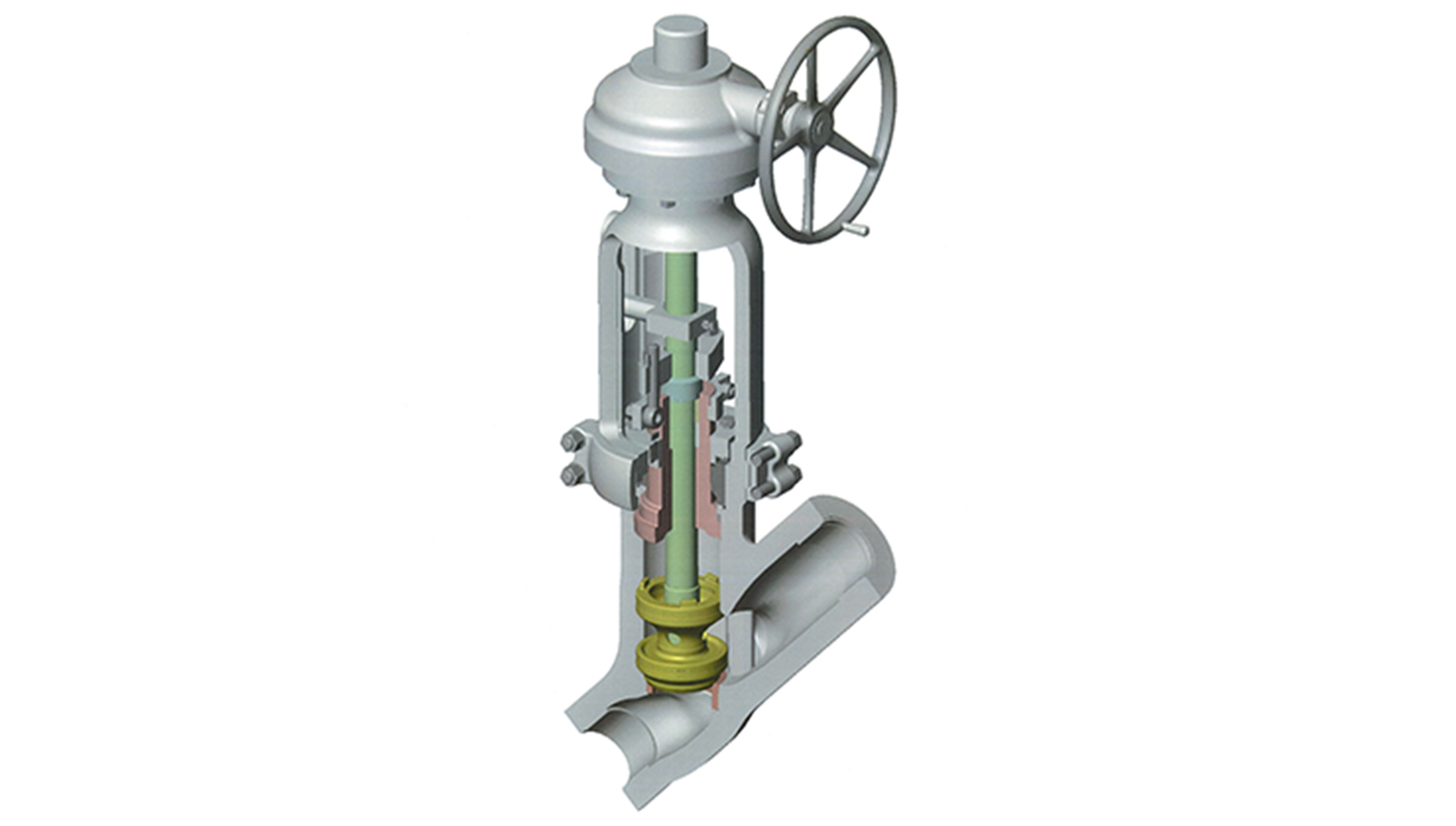

High-pressure screw-down stop check valve
Nominal diameter (mm) | 15–400 |
---|---|
Pressure class | 1500–4500 lbs. |
Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |
![](img/reverse/reverse_img09.jpg)

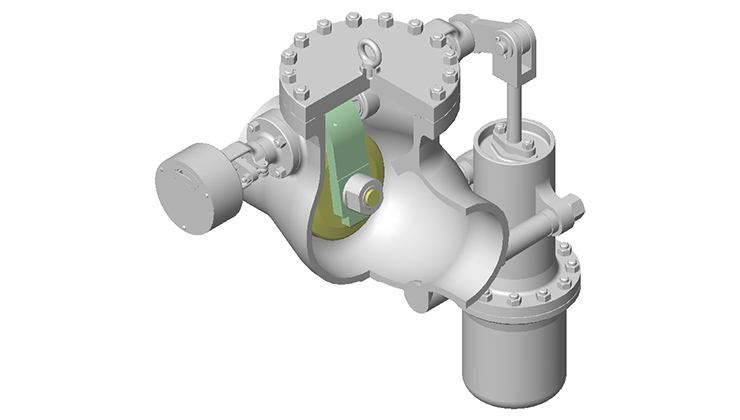

Bleed check valve
Nominal diameter (mm) | 200–600 (Contact us regarding large valves.) |
---|---|
Pressure class | 150–900 lbs. |
Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |
