By use: For nuclear power generation

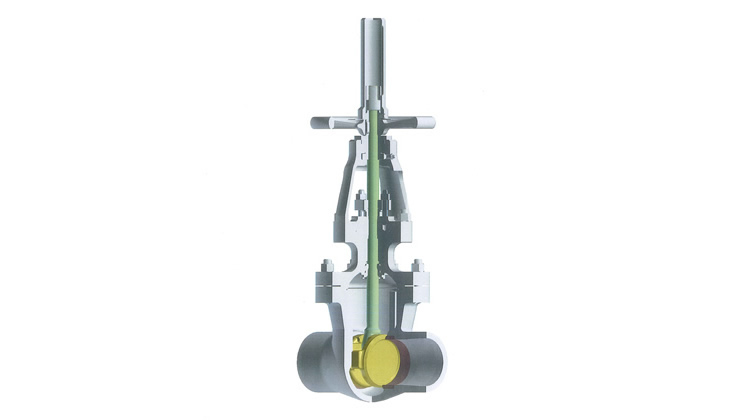

Low- and medium-pressure wedge gate valve
| Nominal diameter (mm) | 15～600 |
|---|---|
| Pressure class | 150～900Lb |
| Main pressure-resistant materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |

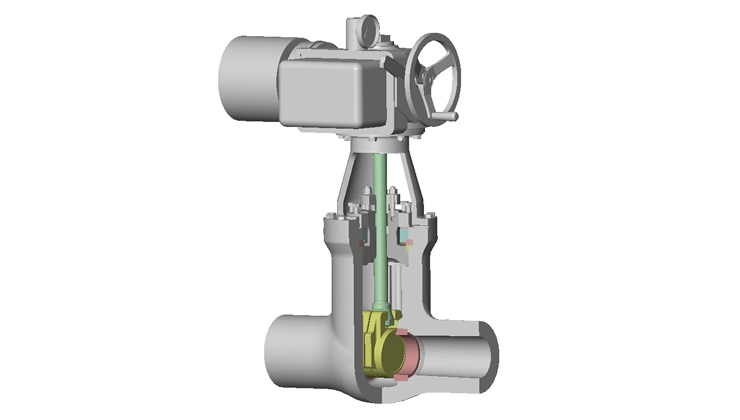

High-pressure wedge gate valve
| Nominal diameter (mm) | 15–600 |
|---|---|
| Pressure class | 1500–4500 lbs. |
| Main pressure-resistant materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |

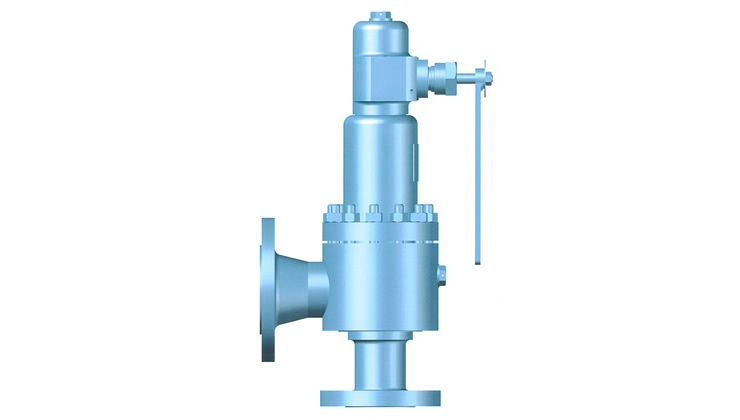

Open safety valve
| Nominal diameter (mm) | 40–200 |
|---|---|
| Fluid | Steam |
| Pressure range | 0.1–42.9 MPa max. |
| Temperature range | 650°C max. |
| Materials | Carbon steel, Cr-Mo steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |

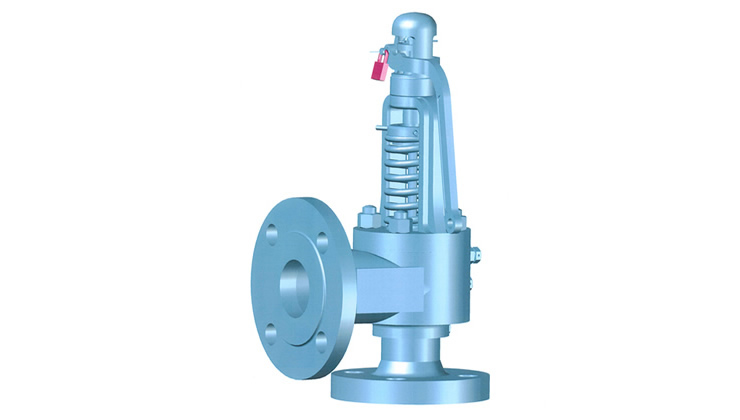

Sealed relief valve
| Nominal diameter (mm) | 20–200 |
|---|---|
| Fluid | Gas, liquids (water), steam |
| Pressure range | 0.1–46.2 MPa *1 |
| Temperature range | Room temperature to 373°C *1 |
| Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards) |
- *1
- Pressure range and temperature range vary with the fluid.

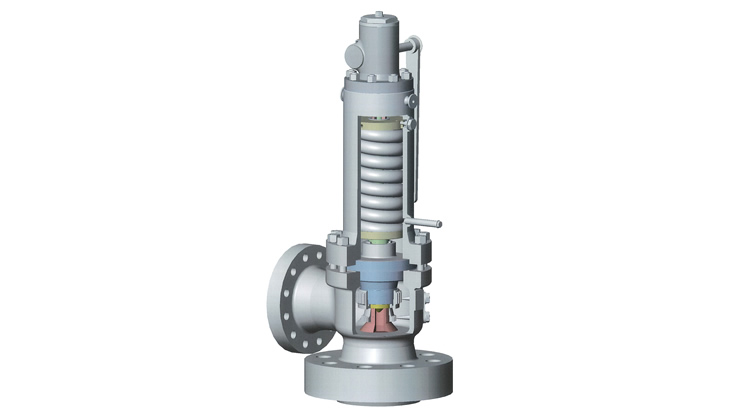

Pressurizer safety valve
| Nominal diameter (mm) | 100•150 |
|---|---|
| Fluid | Steam |
| Pressure range | 17.16 MPa *2 |
| Temperature range | 353°C (saturation temperature) *2 |
| Materials | JIS SCS14A |
- *2
- Actual delivered value
Vacuum relief valve
| Nominal diameter (mm) | 300•500 |
|---|---|
| Fluid | Steam |
| Pressure range | 0.0005 to 0.0007 MPa (Open valve differential pressure) *2 |
| Temperature range | 141°C max. *2 |
| Materials | JIS SF490A, SCPH2 |
- *2
- Actual delivered value
Main steam safety valve
| Nominal diameter (mm) | 100•125•150 |
|---|---|
| Fluid | Steam |
| Pressure range | 7.46–8.58 MPa *2 |
| Temperature range | 292–301°C (saturation temperature) *2 |
| Materials | JIS SCPL1 |
- *2
- Actual delivered value
Moisture Separator Reheater Relief Valve
| Nominal diameter (mm) | 400•600 |
|---|---|
| Fluid | Steam |
| Pressure range | 1.07–1.59 MPa *2 |
| Temperature range | 195–316C *2 |
| Materials | JIS SCPH2 |
- *2
- Actual delivered value
Cross-around pipe safety valve
| Nominal diameter (mm) | 550 |
|---|---|
| Fluid | Steam |
| Pressure range | 1.52–1.69 MPa *2 |
| Temperature range | 256–260C *2 |
| Materials | JIS SCPH2 |
- *2
- Actual delivered value

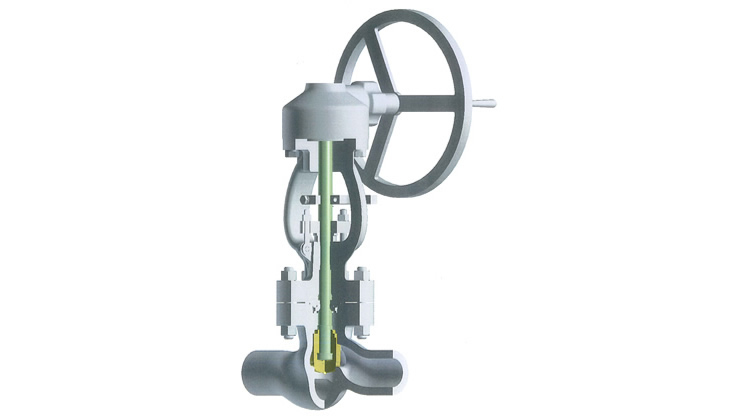

Low- and medium-pressure small-diameter Globe valve
| Nominal diameter (mm) | 15–50 |
|---|---|
| Pressure class | 900 lbs. (900-lb. rating can also substitute for 150–600 lbs.) |
| Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |
Low- medium-pressure large-diameter Globe valve
| Nominal diameter (mm) | 65–300 |
|---|---|
| Pressure class | 1500–4500 lbs. |
| Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |

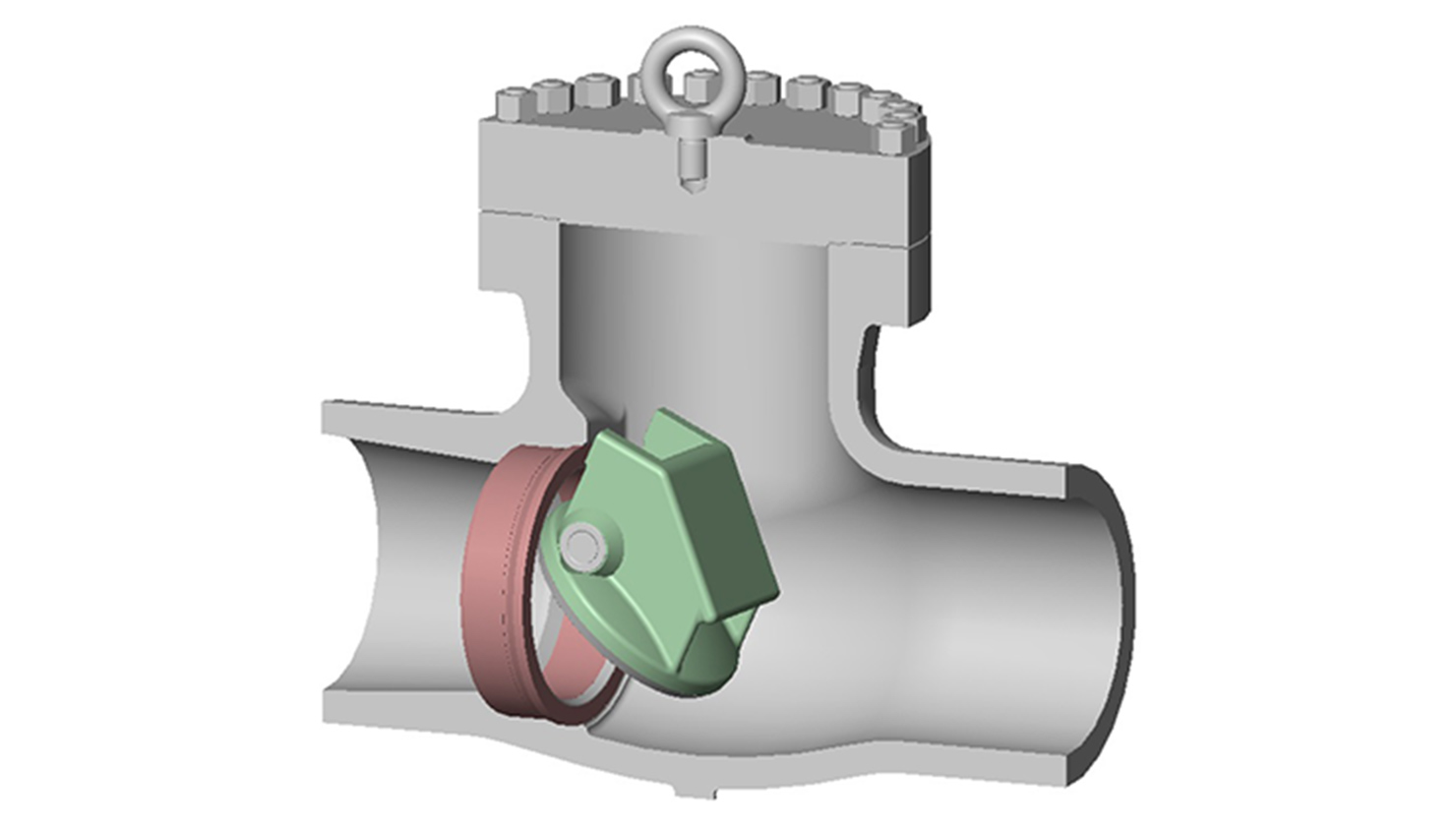

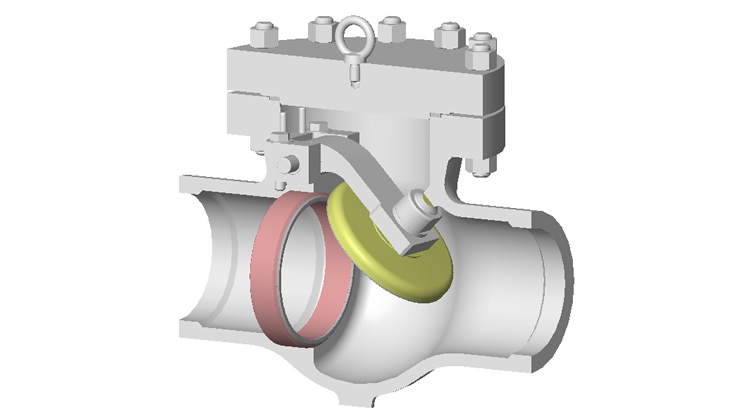

Low- and medium-pressure swing check valve
| Nominal diameter (mm) | 65–400 |
|---|---|
| Pressure class | 150–900 lbs. |
| Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |

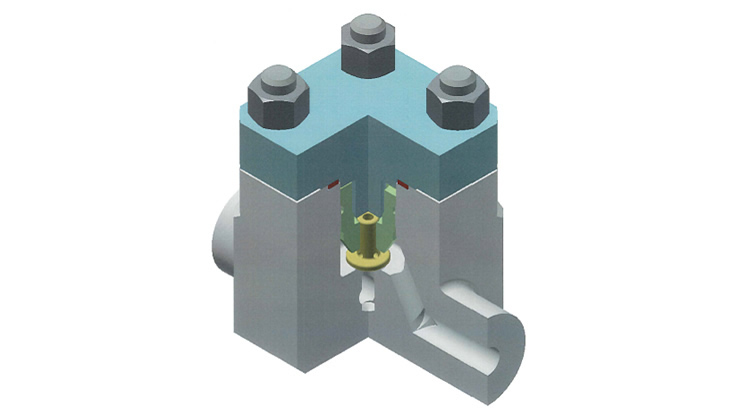

Medium-pressure lift check valve
| Nominal diameter (mm) | 15–50 |
|---|---|
| Pressure class | 900 lbs. (900-lb. rating can also substitute for 150–600 lbs.) |
| Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |
Low- and medium-pressure tilting check valve
| Nominal diameter (mm) | 50–600 |
|---|---|
| Pressure class | 150–900 lbs. |
| Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |

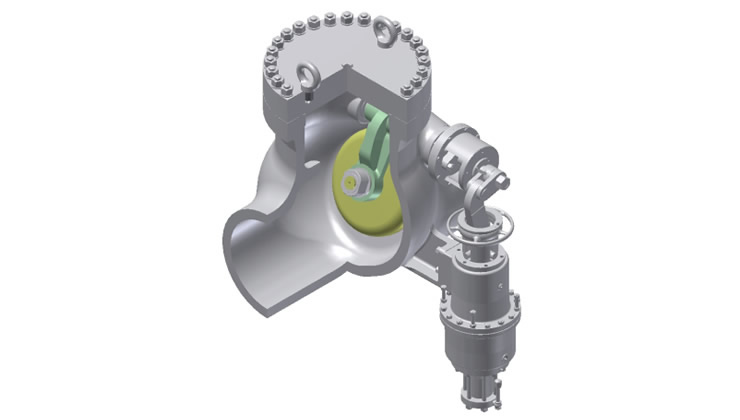

Bleed check valve
| Nominal diameter (mm) | 200–600 (Contact us regarding large valves.) |
|---|---|
| Pressure class | 150–900 lbs. |
| Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |

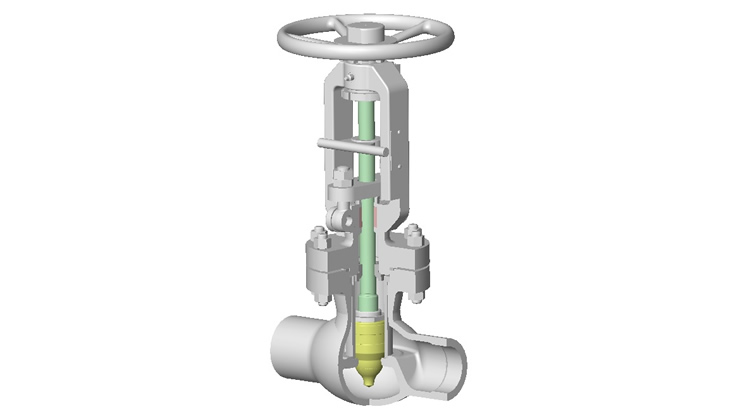

Needle valve for low and medium differential pressures
| Nominal diameter (mm) | 15–200 |
|---|---|
| Pressure class | 150–4500 lbs. |
| Materials | Carbon steel, Cr-Mo steel, stainless steel (JIS, ASME and ASTM standards and interpretation of technical standards for steel for thermal power generation equipment) |

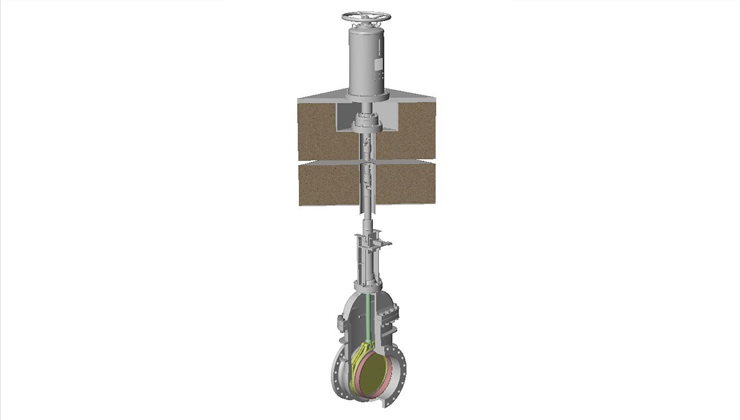

Fuel transfer pipe gate valve
| Nominal diameter (mm) | 500–550 |
|---|---|
| Pressure class | 150 lbs. |
| Materials | JIS SCS13A |
Main steam isolation valve
| Nominal diameter (mm) | 600–750 |
|---|---|
| Pressure class | 600–900 lbs. |
| Materials | JIS SCPL1, JIS SCPH2 |
Main steam check valve
| Nominal diameter (mm) | 650–750 |
|---|---|
| Pressure class | 600–900 lbs. |
| Materials | JIS SCPH2 |
Safety injection system check valve
| Nominal diameter (mm) | 300 |
|---|---|
| Pressure class | 1550 lbs. |
| Materials | JIS SCS 14A |
